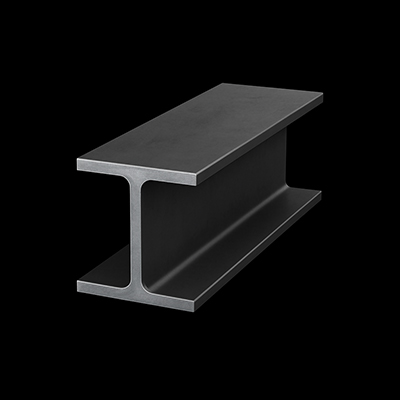

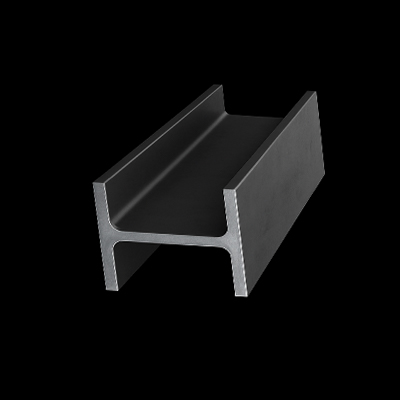

European Standard HPE Beams – Heavy-Duty H-Section Steel
HPE Beams are high-strength, wide-flange steel profiles engineered for demanding structural applications.
With thicker flanges and greater load capacity than standard beams, HPE sections are the ideal choice for heavy construction and high-load support.
Specifications
| Section | Height (mm) | Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
| HPE 100 | 100 | 100 | 6 | 10 | 20.4 |
| HPE 120 | 120 | 120 | 6.5 | 11 | 26.7 |
| HPE 140 | 140 | 140 | 7 | 12 | 33.7 |
| HPE 160 | 160 | 160 | 8 | 13 | 42.6 |
| HPE 180 | 180 | 180 | 8.5 | 14 | 53.4 |
| HPE 200 | 200 | 200 | 9 | 15 | 64.3 |
| HPE 220 | 220 | 220 | 9.5 | 16 | 76.1 |
| HPE 240 | 240 | 240 | 10 | 17 | 89 |
| HPE 260 | 260 | 260 | 10 | 18 | 99.2 |
| HPE 280 | 280 | 280 | 10.5 | 19 | 112.5 |
| HPE 300 | 300 | 300 | 11 | 20 | 126.4 |
| HPE 320 | 320 | 300 | 11.5 | 21 | 134.2 |
| HPE 340 | 340 | 300 | 12 | 22 | 144.7 |
| HPE 360 | 360 | 300 | 13 | 23 | 156.4 |
| HPE 400 | 400 | 300 | 14 | 24 | 178 |
